SHIELD G50

Gravel Bike Mudguard Set

Specially designed for Gravel bikes, the mudguard Shield G50 will protect you from rain and mud splashes. It is sold as a set (front and rear mudguard). The mounting is easy and universal: the MD-Strap fastening allows an attachment on the rear stays and on the front fork. Thanks to its position close to the wheel, it is both discreet and efficient. Delivered with 3 mud flaps of different sizes, you can adapt the length of the rear mudguard to the geometry of your bike.



Quantity
€37.46
place FIND A RESELLER

Adjustable universal mount

Quick to install and remove.

Adaptable Length

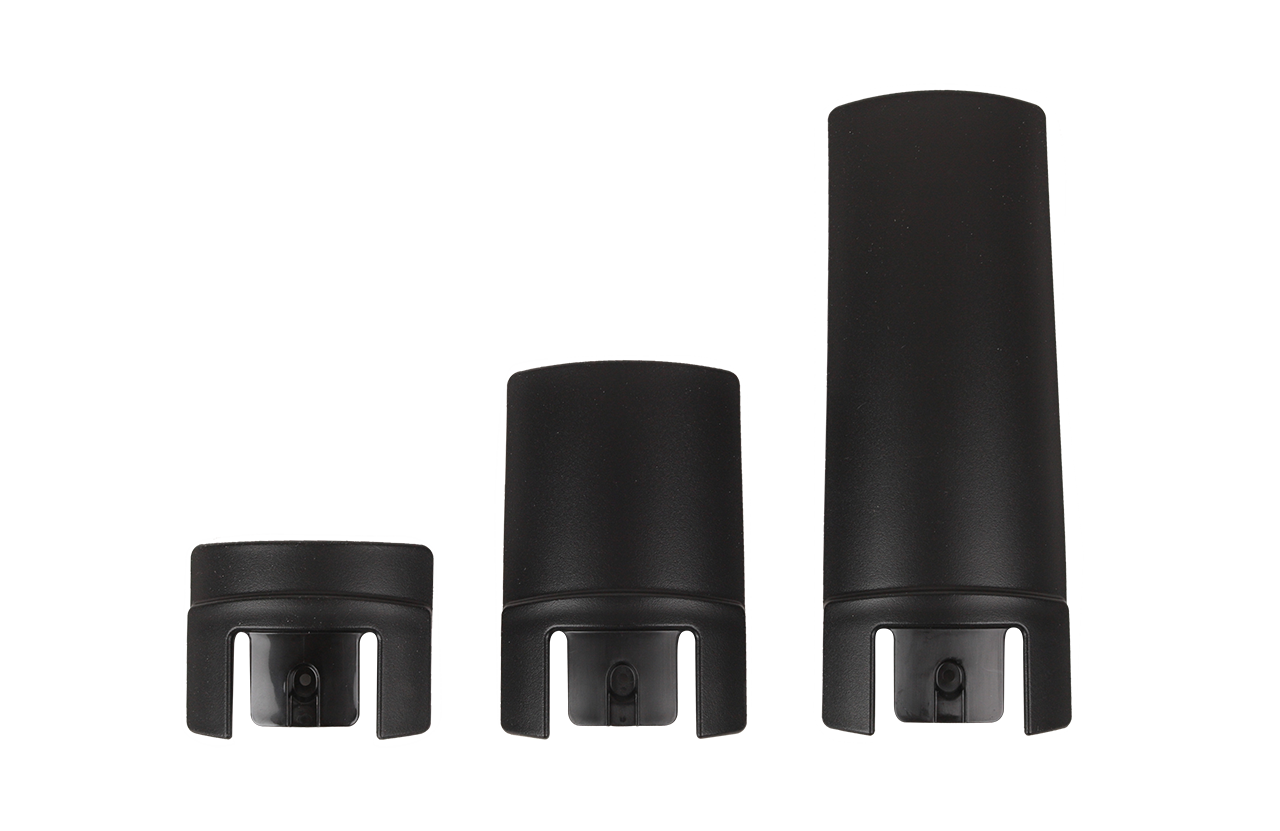

3 mud flaps supplied of 20, 60 and 120 mm.

Universal Gravel

For 650B / 28'' / 700C tyres up to 48 mm.

Frame protection

Soft pads and silicone-coated straps to protect paintwork.

Discreet and efficient

Mudguard positioned close to the wheel.

Characteristics

Weight
Front 195 g + Rear 212 g (with mud flap 20 mm)
Material
Technopolymer (PP + 20% FG)
Mounting
MD-Strap For front Ø 10 to 55 mm and rear Ø 10 to 32 mm. Front 210 mm / rear 150 mm straps length.
Wheel Ø
650b / 28'' / 700c
Protection level
Maximal
Max. tire width recommended
48 mm
Product reference
2545
Front fender dimensions (L x W x H)
461 x 54 x 210 mm
Rear fender dimensions (L x W x H)
560 (with mud flap 20 mm) x 54 x 210 mm

The advantages of this accessory

Adjustable universal mount

Quick to install and remove. The MD-Strap fastening allows an attachment on the rear stays and on the front fork.

Adaptable Length

Delivered with 3 mud flaps of 20, 60 and 120 mm, you can adapt the length of the rear mudguard to the geometry of your bike.

Universal Gravel

Specially designed for Gravel bikes, the mudguard Shield G50 will protect you from rain and mud splashes. For 650B / 28'' / 700C tyres up to 48 mm.

SHIELD G50 DIMENSIONS

Our advices and commitments

Mounting instructions

Tighten the fixing straps firmly.

Directions for use

The MD-Strap has soft pads and silicone-coated straps to protect the frame paint and fork. However, if you want an extra level of protection, we advise you to apply a piece of transparent self-adhesive protection such as our Skin Armor. This protection comes in a choice of two finishes, gloss or matt, depending on the paint finish of your frame.

Maintenance instructions

Regularly check that the straps are tight before each use.

Engineered

Product designed by our R&D department and made in France.

Quality commitment

The commitment to quality is one of our major concerns. If you encounter any difficulties with this product, please contact our quality department.
